A common mistake in Murfreesboro is treating base isolation as a plug-and-play component that works the same regardless of soil conditions. We see this repeatedly with projects near the West Fork Stones River, where the thin clay layer sits directly on pinnacled limestone. The isolation system's effective period depends on the substructure stiffness, and when bedrock is shallow and irregular, the fixed-base assumption fails. A proper Murfreesboro base isolation design requires site-specific spectra per ASCE 7 Chapter 17, accounting for the New Madrid Seismic Zone long-period energy that travels efficiently through the Central US crust. Without this integration, the isolators can end up tuned to the wrong frequency band, amplifying rather than reducing superstructure drift. Our team runs coupled soil-structure models that incorporate MASW shear-wave profiles to capture the impedance contrast at the rock-head, a step that changes the effective damping ratio by 15 to 25 percent compared to code-default assumptions.
In Murfreesboro, the New Madrid long-period hazard combined with shallow, irregular bedrock means base isolation design lives or dies by the accuracy of the substructure soil-structure interaction model.
Area-specific notes

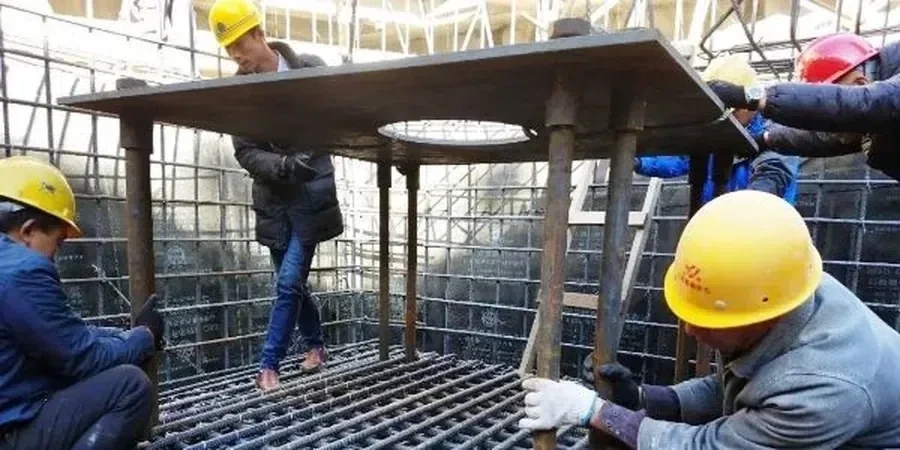

The equipment chain for a Murfreesboro base isolation project starts with the drilling rig that confirms rock depth at each isolator pedestal location. We typically use a track-mounted CME-75 auger rig with automatic SPT hammer, coring into the limestone with an NQ double-tube barrel to verify the top-of-rock elevation and fracture density. Underestimating the pinnacle height can leave an isolator pedestal bearing on compressible clay while its neighbor sits on rock, creating a differential stiffness that concentrates shear into half the devices during an earthquake. In our experience across Rutherford County, the most consequential failure mode we catch during peer review is a uniform-moat design that assumes flat bedrock. A site with just 4 feet of rock-head variation across the building footprint changes the isolator force distribution enough to exceed the prototype test bounds, potentially voiding the system approval. The rig crew logs each borehole with continuous SPT sampling and Rock Quality Designation measurements, feeding directly into the three-dimensional foundation impedance matrix.
Q&A
What is the typical construction cost for a base isolation system on a medium-sized building in Murfreesboro?
For a medium-sized commercial or institutional building in Murfreesboro, the base isolation system — including the isolator devices, moat wall construction, utility crossings, and testing — typically ranges from US$3,890 to US$7,440 per isolator unit. The total project cost depends on the number of isolators, which is driven by the column grid and axial load distribution. A 30-isolator building generally falls between US$117,000 and US$223,000 for the complete isolation package, excluding the foundation mat and grade beams. These figures reflect Rutherford County market rates as of 2025 and include prototype testing per ASCE 7 Chapter 17 requirements.
How does the New Madrid Seismic Zone influence base isolation design in Murfreesboro compared to other US regions?
The New Madrid zone generates long-period energy (1.0 to 3.0 seconds) that travels efficiently through the stiff crust of the central United States with relatively low attenuation. In Murfreesboro, roughly 200 miles from the source, the MCE_R spectral ordinates at 1.0-second period are significantly higher than what a coastal California site would see at the same distance from the San Andreas fault. This forces isolation periods longer than 2.0 seconds to achieve meaningful reduction, and it makes the moat displacement demand — often 20 to 26 inches — the governing design parameter. West Coast isolation designs frequently target a 1.5-second period with 12 to 16 inches of displacement, so Murfreesboro systems are inherently larger and more expensive per isolator.
What soil conditions in Murfreesboro are most problematic for base isolation and how do you address them?
The main challenge is the irregular limestone bedrock surface beneath the residual clay blanket. When bedrock depth varies more than 3 feet across the building footprint, the foundation impedance becomes non-uniform, and some isolators effectively see a stiffer substructure than others. We address this with a dense grid of SPT borings — typically one per column location — supplemented by MASW shear-wave profiles to map the rock-head. The foundation design uses a rigid mat with deepened pedestals at shallow-rock locations to equalize stiffness. In areas where karst features (solution cavities) are suspected, we add electrical resistivity tomography to locate voids before finalizing isolator placement.
What testing is required for base isolation devices before they can be installed on a Murfreesboro project?
ASCE 7-22 §17.8 requires prototype testing of at least three full-scale isolator specimens per type. Each prototype undergoes 20 cycles at the design displacement under maximum and minimum axial loads, followed by three cycles at the total maximum displacement (MCE_R level). The tested properties — effective stiffness and equivalent viscous damping — must fall within 15 percent of the nominal design values. Additionally, two production tests per ten isolators (minimum two) verify that manufactured units match the prototype behavior. All testing must be performed by an independent laboratory, and the test report is part of the peer review submittal package.
Can base isolation be retrofitted to existing buildings in downtown Murfreesboro's historic district?
Yes, seismic isolation retrofits are feasible for existing structures in Murfreesboro, including masonry and concrete-frame buildings in the historic downtown area around the Rutherford County Courthouse. The process involves temporarily supporting the structure on jacking columns, cutting the existing columns at ground level, and inserting isolators between the foundation and the superstructure. The engineering challenges include maintaining building occupancy during construction, routing utilities across the new moat, and verifying that the existing foundations can handle the concentrated isolator loads. ASCE 41-23 provides the retrofit performance criteria, and we typically target immediate occupancy performance at the BSE-1E hazard level for historic structures.
